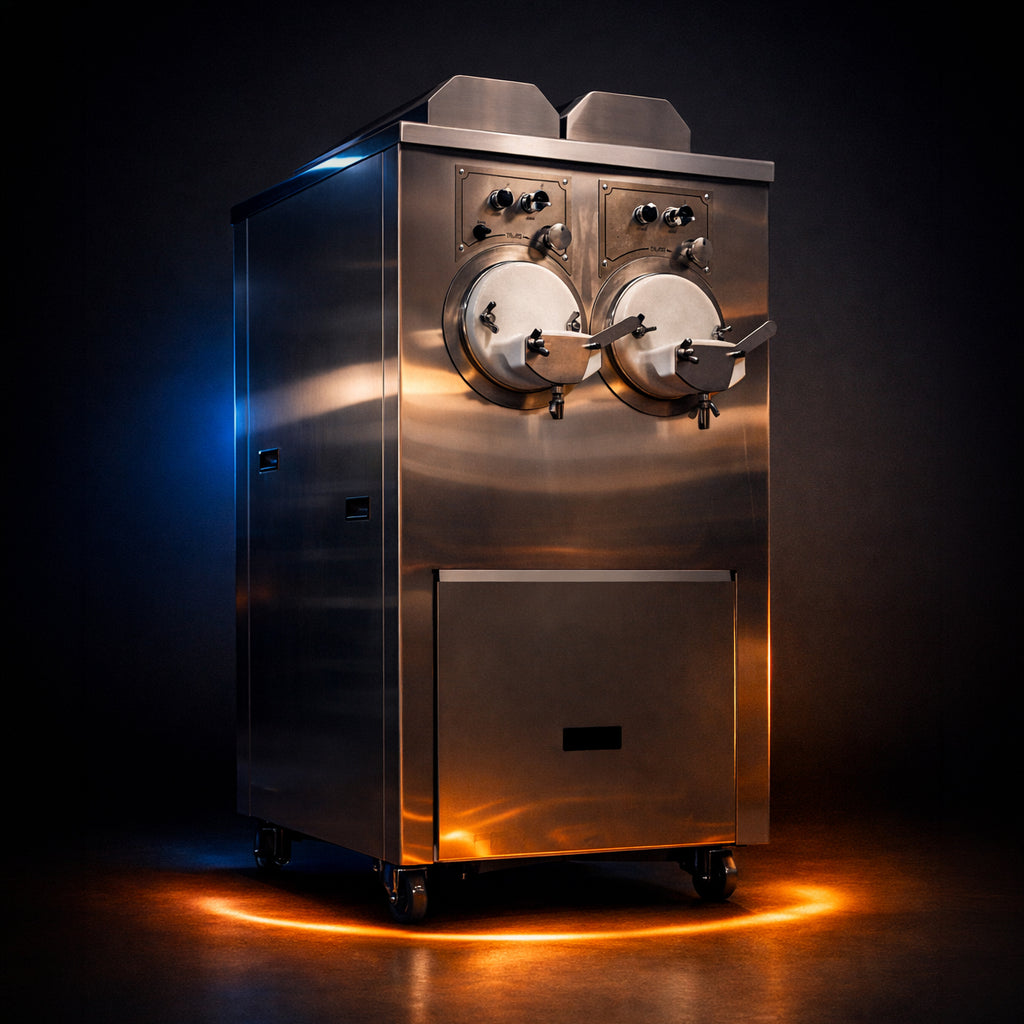

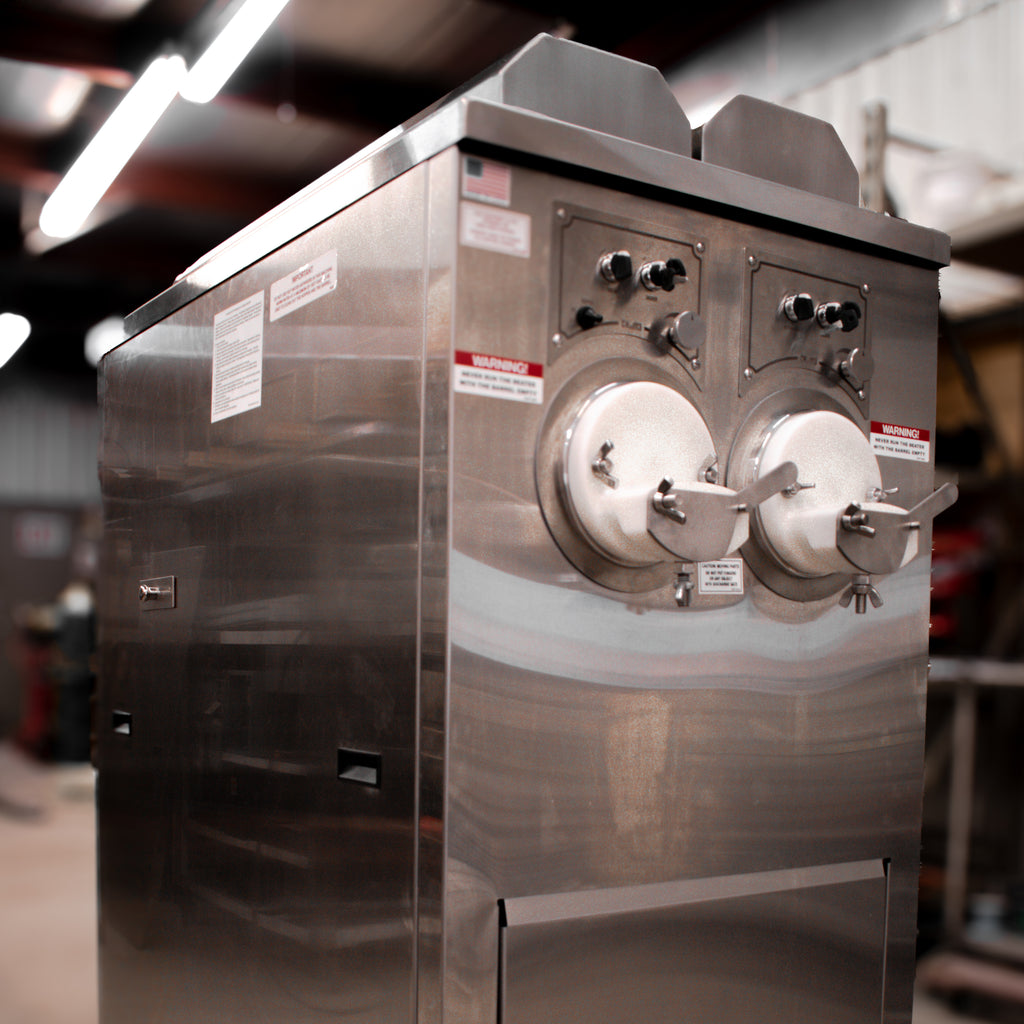

CK-200 Frozen Custard Machine

Built for precision and performance, the CK200 Series 3 delivers smooth, authentic frozen custard through dual continuous‑flow barrels. Its stainless‑steel construction, independent controls, and high‑capacity design make it ideal for commercial operations that demand consistency, speed, and craftsmanship in every batch.

Specifications
Net Weight: 1090 lbs (Water Cooled)
Net Weight: 850 lbs (Air Cooled)
Width: 27¼"
Depth: 46⅜"
Height: 56½"
Height with lid: 63"

Casters and Legs
Standard 5" casters included.
6" legs available upon request.

Power Requirements
CK200: 1PH/3PH 230V 60Hz 30A
Hopper: 1PH 115V 60Hz 20A

Custom electrical requirements available. Contact us for details.

Condensing Units
Width: 38"
Depth: 28¼"
Height: 17"
Weight: 275 lbs
Circuit Size: 30A 1PH/3PH 230V

One unit per barrel, located remotely. Not required for water-cooled machines.

Electrical
One dedicated electrical connection required per barrel. Manufactured for permanent connection.

Dasher
One 3.0 HP motor per barrel

Refrigeration
R404A in barrel system
R134A in hopper system

Documents
Product Brochure

*Specifications subject to change without notice.
